Category: Long-Range Primary Radar

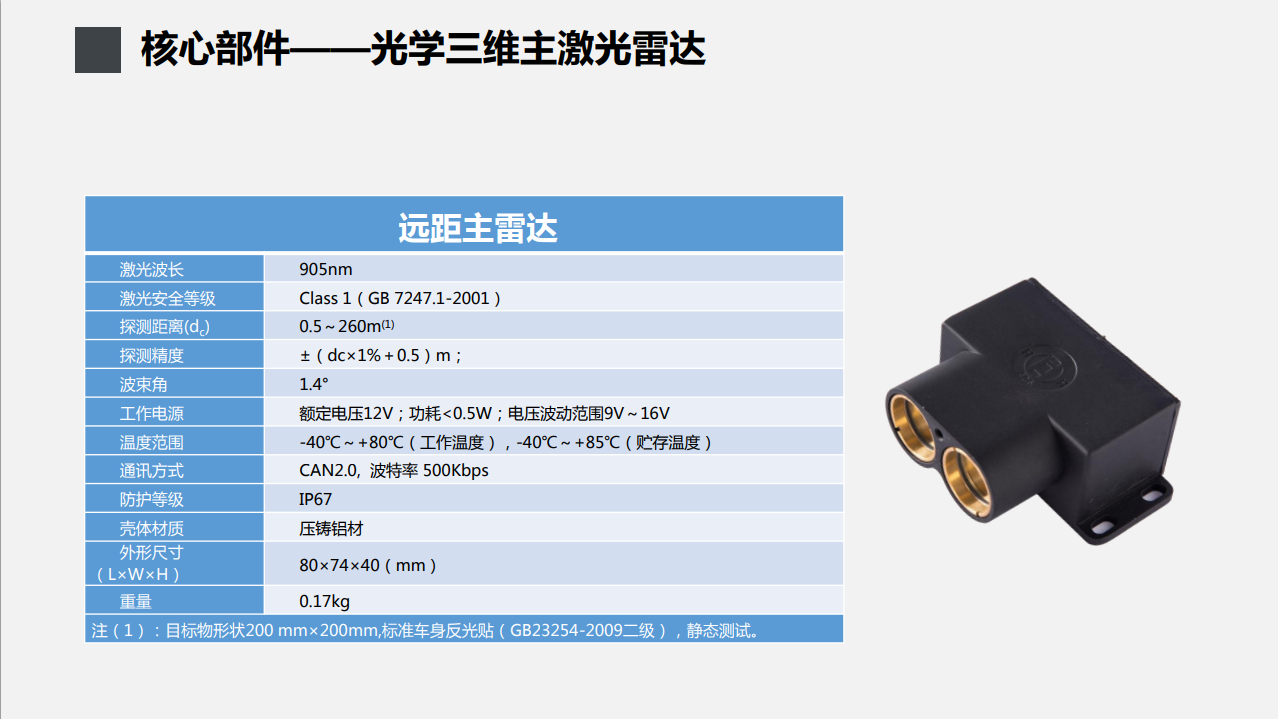

Main Technical Parameters:
Note 1: Static testing was conducted under conditions where the target object had dimensions of 200mm x 200mm and was equipped with a standard vehicle body reflective sticker (GB23254-2009 Class II).

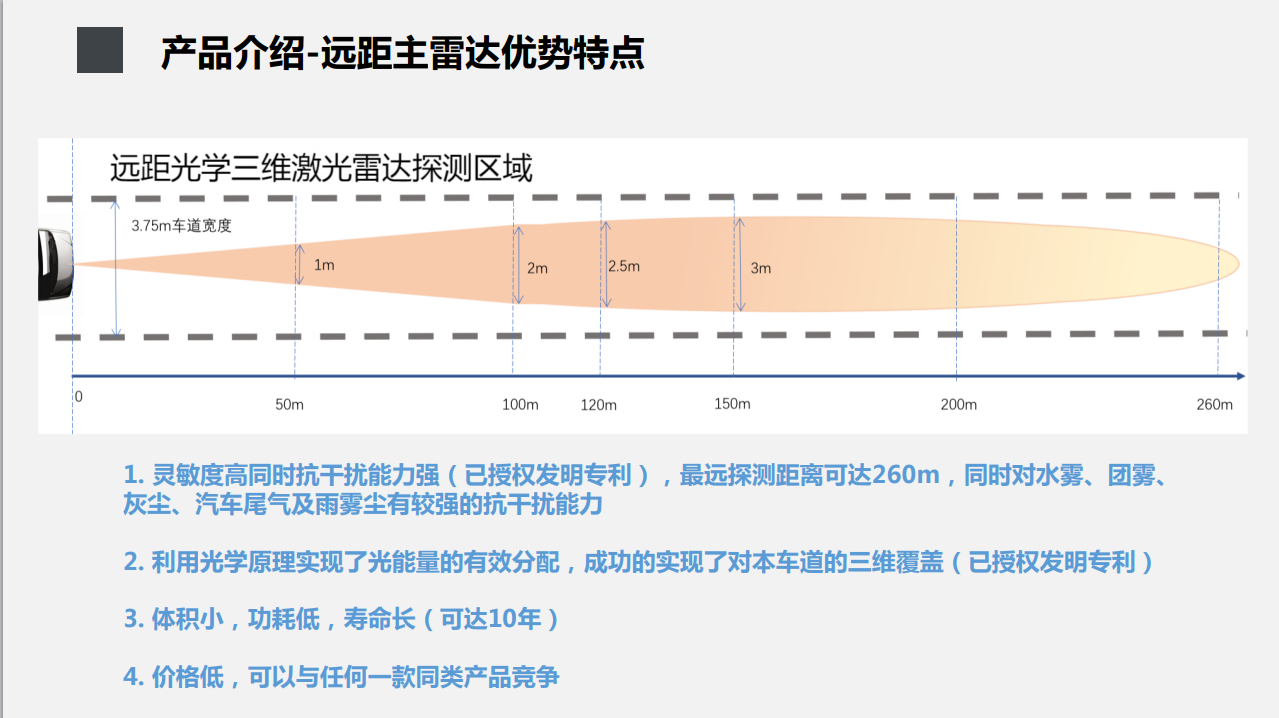

The long-range optical 3D LiDAR features a detection area width of up to 3.75m and a detection range from 1m to 260m. This radar boasts high sensitivity and robust anti-interference capabilities, enabling it to function normally under various harsh weather conditions, such as water mist, fog patches, dust, automobile exhaust, as well as a combination of rain, fog, and dust. Utilizing optical principles, it effectively allocates optical energy and successfully achieves three-dimensional coverage of the current lane. The radar is compact in size, consumes low power, has a long lifespan (up to 10 years), and offers a competitive price, making it comparable to any similar products on the market.

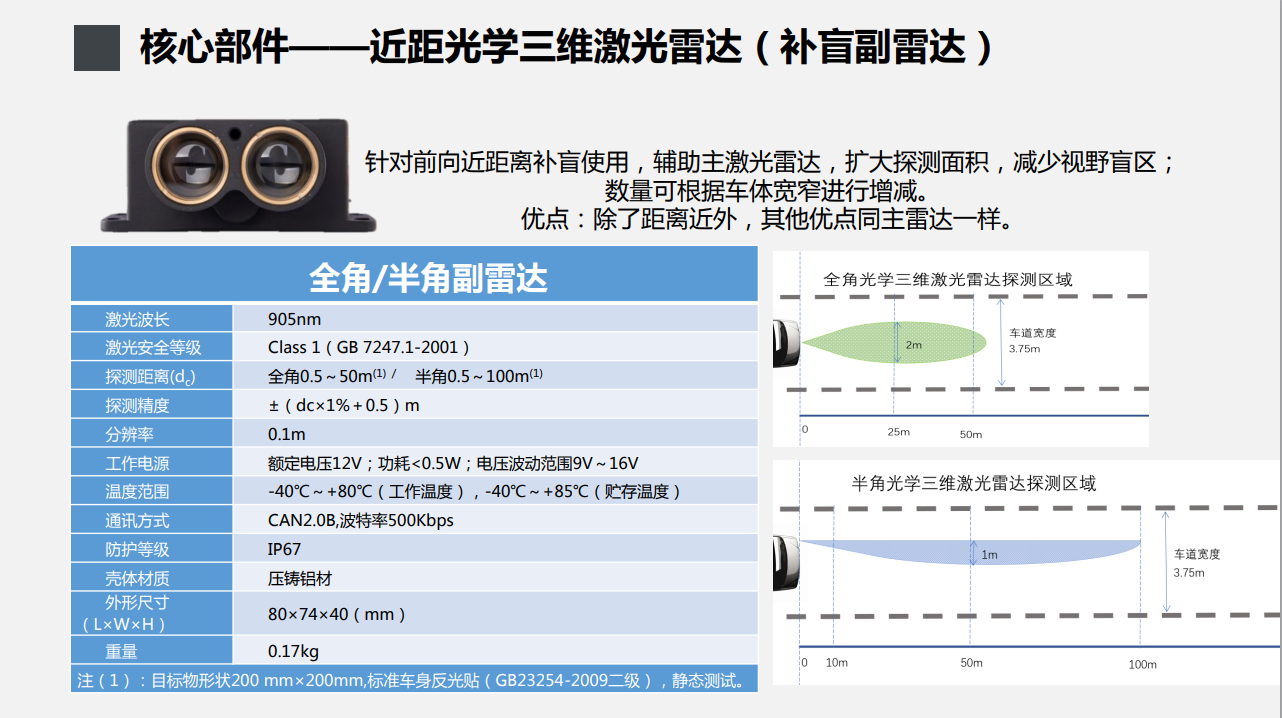

Category: Short-Range Secondary Radar
Purpose: To fill in blind spots in the forward short-range area, assist the primary LiDAR, expand the detection area, and reduce visual blind spots. The quantity can be adjusted according to the width of the vehicle body.
Advantages: It possesses the same performance advantages as the primary radar, except for a shorter detection range.
Full-Angle/Half-Angle Secondary Radar
Detection Area of Full-Angle Optical 3D LiDAR
Detection Area of Half-Angle Optical 3D LiDAR
Note 1: Static testing was conducted under conditions where the target object had dimensions of 200mm x 200mm and was equipped with a standard vehicle body reflective sticker (GB23254-2009 Class II).
