Introduction to the AEBS Actuator - Wire-Controlled Air Valve Product of Henan Hanghu Group

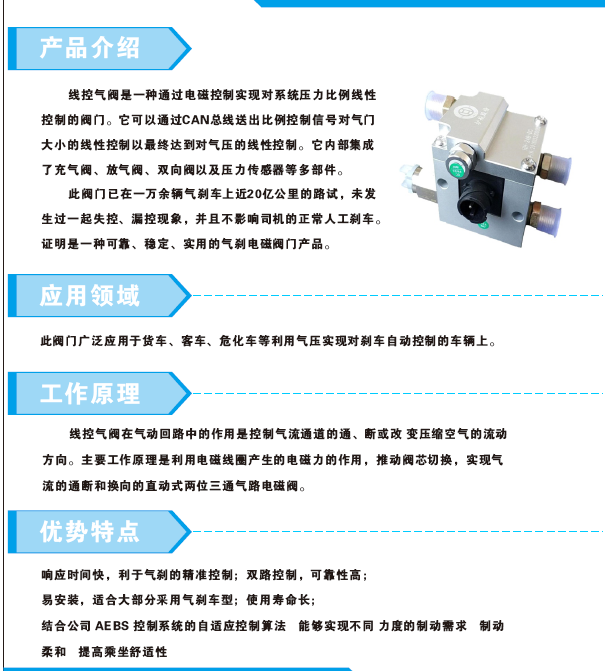

[Overview]
The wire-controlled air valve launched by Henan Hanghu Group is an electromagnetic control valve specifically designed for pneumatic brake systems. This product ensures linear adjustment of brake pressure through precise electronic signal control, enabling precise management and control of vehicle braking systems. After extensive road testing, this product has demonstrated excellent performance in terms of safety, stability, and reliability.
[Application Fields]
The wire-controlled air valve is highly suitable for installation on commercial vehicles that require an automatic brake system with air pressure control, such as trucks, buses, and vehicles transporting hazardous chemicals.
[Working Principle]
The solenoid valve is located in the pneumatic circuit and is responsible for controlling the opening and closing of the gas flow channel, or changing the direction of the compressed air. It operates based on electromagnetic principles, using the force generated by the electromagnetic coil to drive the valve core to switch, thus achieving the on-off and directional control of the gas flow.
[Advantages and Features]
The rapid response time ensures precise control of braking force;
The dual-channel control system design enhances overall reliability;
Easy to install, compatible with most air-brake models;
Long-lasting design meets the need for prolonged use;
Combining the company's AEBS control system with adaptive control algorithms can meet braking demands of varying intensities and enhance ride comfort.

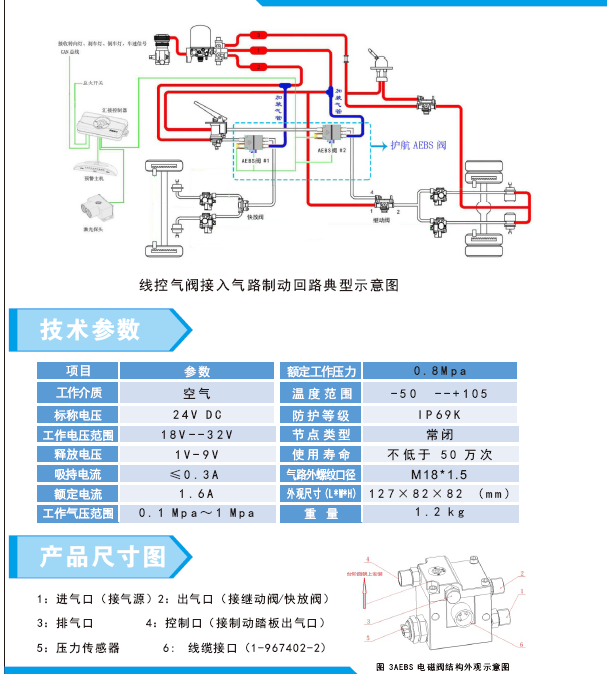

[Technical Parameters]
Rated working pressure: 0.8 MPa
Working medium: Air
Temperature range: -50℃ to +105℃
Nominal voltage: 24V DC (Protection level IP69K)
Operating voltage range: 18V--32V
Node type: normally closed
Release voltage: 1V-9V
Service life: not less than 500,000 times
Holding current: ≤0.3A
External thread diameter of gas path: M18*1.5
Rated current: 1.6A
Dimensions (LxWxH): 127x82x82 mm
Operating pressure range: 0.1 MPa to 1 MPa
Weight: 1.2kg
[Product Details]
Air inlet (connected to air source)
Air outlet (connected to relay valve/quick release valve)
Exhaust port
Control port (connected to the brake pedal air outlet)
Pressure sensor
Cable connector (model 1-967402-2)
The wire-controlled air valve from Henan Hanghu Group represents the company's in-depth research and innovation capabilities in the field of automotive safety technology, and is committed to providing efficient and reliable intelligent braking solutions for commercial vehicles.
